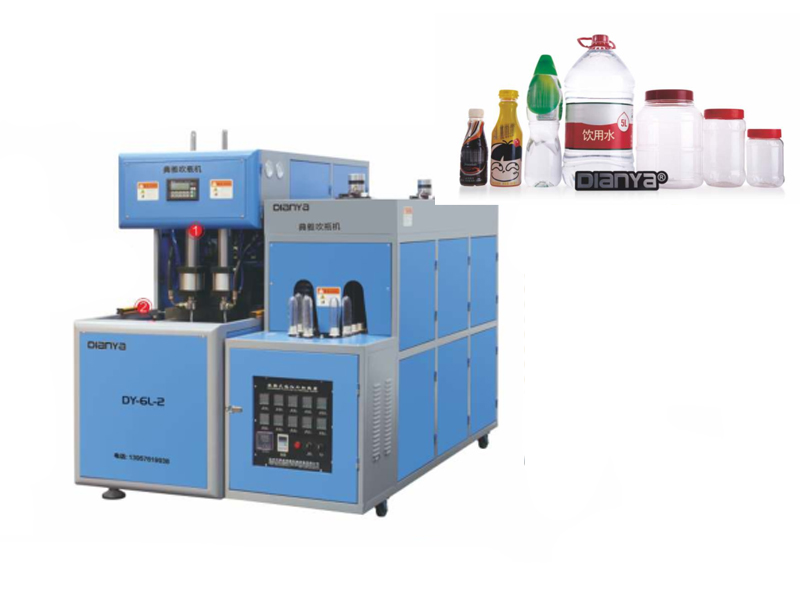

Semi-Automatic Blow Molding Machine (1 Cavity)-6L/  Semi-Automatic Blow Molding Machine (2 Cavity)-6L

Semi-Automatic Blow Molding Machine (1 Cavity)-6L/ Semi-Automatic Blow Molding Machine (2 Cavity)-6L

Email: sales@dianyamachine.com

Product Details

Container

Max Container Volume Itr

6

Max, Neck Diameter   mm

120

Max Container Diameter  mm

185

Max Container Height mm

380

Technical Parameters:



DY-500

DY-6L-2

Molding

Clamping Force  kg

25000

30000

Clamping Stroke  mm

215

215

Stretching strok  mm

400

400

Bottom Stroke  mm

\

\

Cavity Spacing  mm

300

90-120

Number of Cavity  Cavities

1-2

1-2

Carriage Unit pcs

72

96

Theoretical Output

bph

400-1100

800-1200

Electrical System

Total Power  kw

18

42

Heating Power  kw

32x0.5KW=16

40x1KW=40

Number of Lamp Layers  Layers

8

10

Air System

Operating Pressure  kg/cm²

7-9

7-9

Low Pressure Air Consumpt Itr/min

600

800

Blowing Pressure  kg/cm²

20-30

20-30

High Pressure Air Consumpt Itr/min

1200

1600

Chiller

Operating Pressure kg/cm²

2-4

2-4

Temperature Range ℃

10-12

10-12

Consumption  kcal/hr

1000

2000

Flow Rate  Itr/min

100

100

Machine(Blower)

Main machine dimensions mm(L*W*H)

1900 x650x1800

2000 x780x1800

Main Machine Weight  kg

750

800

Machine(Heater)

Heater Dimensions  mm(L*W*H)

1700 x670x1600

2170 x670x1600

Heater Weight kg

350

400
